90watt Solar Integrated Highmast Light

90watt Solar Integrated Highmast Light

The 90W Solar Integrated High Mast Light by KS Lighting is a premium, high-intensity lighting solution designed to meet the demands of large-scale outdoor applications. This advanced light offers powerful illumination, energy efficiency, and long-term reliability, making it ideal for industrial areas, highways, stadiums, airports, and other expansive spaces.

Key Features:

  • Unmatched Brightness: With a 90W LED module, this light delivers exceptional lumen output and uniform distribution, ensuring superior visibility across vast areas.
  • High-Efficiency Solar Panels: Designed with advanced solar technology, it maximizes energy absorption during the day for consistent, off-grid nighttime operation, reducing energy costs.

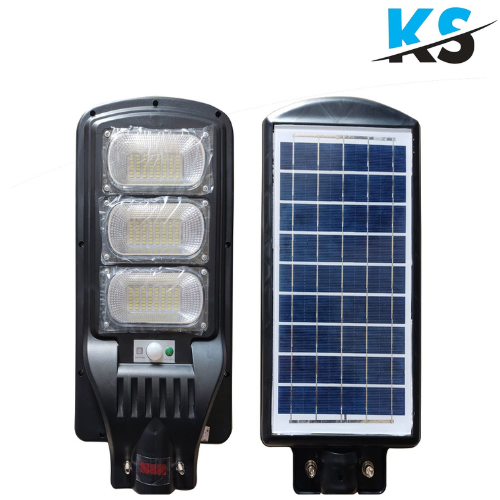

  • Integrated All-in-One Design: Combines solar panels, a high-capacity lithium-ion battery, and a powerful LED light in a single compact unit for easy installation and reduced maintenance.
  • Durable and Weather-Resistant: Built with IP65-rated materials, this light is engineered to withstand harsh weather conditions and deliver reliable performance in challenging environments.
  • Intelligent Lighting Features: Equipped with dusk-to-dawn sensors, motion detection, and smart energy management systems to optimize power usage and extend operational life.
  • Optimized for High Mast Poles: Provides broad and uniform light coverage for high mast installations, ensuring minimal shadowing and maximum efficiency.

The 90W Solar Integrated High Mast Light reflects KS Lighting’s commitment to delivering sustainable, high-performance lighting solutions. It is a dependable and eco-friendly option for large-scale outdoor lighting requirements.

Description Details
LED Light 90W
Solar PV Module(Power) 180W
LED Luminaire Type ALLUMINIUM HOUSING
Battery Capacity @ C/10 78AH LIFEPO4 BATTERY
Pole G.I. Galvanized MS(10meter)| G.I. Galvanized MS(7meter+5 meter)
Charging Type MPPT
Voltage 12.8V
Cell High efficiency Multi Crystalline silicon cells/
Rigidity Designed to with stand tough environment conditions
Charging Efficiency <96%
Self Discharge <2% per month at 27°C
Battery Box Casing 100% Acid Proof/Polymer Battery Box/GI Metal Box
Driver Efficiency 92%
World Class LEDs From Japan/Germany
Lumen Efficiency/Watt >120 Lumen/w
Rated Lamp Life (Avg.) hrs More than 50,000 hrs
IP Class IP 65/67
Humidity 95%
Power Factor 01
Operating Temperature -15°C to + 80°C
Dimmer Programmable (Micro-Controller Based)
Autonomy 3 Days
Protection Open Circuit, Short Circuit Protection for Lamp, Over Charge & Deep Discharge Over load, Reverse polarity, Reverse Flow
Indicators Green Charging, Red Low Battery
Product Warranty 5 years warranty complete system
